Stainless Steel Explosion Proof Box(CNEX，Medium interior space)
- Model
- ZAJ350
Item specifics
- Material
- Stainless steel 304 or 316L
- Certified
- CNEX, CCC
- apply
- Gas Zone 1, Zone 2, Dust Zone 21, 22.
- Power Supply
- AC85V～AC265V
- Water Resistant Grade
- IP66
Review
Description
Features
·Stainless Steel Explosion Proof Junction Box for hazardous area
·Certified standards CNEX（GB3836-2010）·Auto temperature adjust kit for aggressive area
·Surface optional electro-polished or painting
Application scenario
It is Applicable to combustible gases and dust mixture places，such as petroleum, chemical industry, mine, military industry, medicine，oil depots, ships, drilling platforms, gas stations, fireworks production, grain processing and storage, etc.
Certificate | |||
|
ATEX Certificate Mark
|
ExdⅡC T6 Gb/ Ex tD A21 IP68 T80℃
|
||
|
Certificate
|
CNEx18.3598X
|
||
CCC | Support | ||
Mechanical | |||
Housing | Stainless steel 304 or 316L | ||
Ingress protection | IP66 | ||
Optional Power Convert Module | |||
Voltage Input | AC100V～AC240V | ||
Current | ≦500mA | ||
Ambient | |||
Ambient temperature | -25℃～+60℃ | ||
Relative Humidity | ≦95% (no condensation) | ||

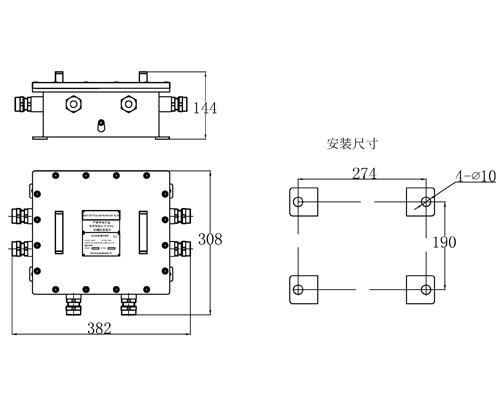

MECHANICAL
Material: Stainless steel 304/316L
Ingress protection: IP66
Cable thread hole: 6pcs M25*1.5, M27*1.25
Overall size: 382*308*144mm
Inner usable size:240*210*101mm
Net Weight: 14kg
