Stainless Steel Explosion Proof Junction Box
- Model
- ZA-JXD4
Item specifics
- Material
- Stainless steel 304 or 316L
- Certified
- CNEX, CCC
- apply
- Gas Zone 1, Zone 2, Dust Zone 21, 22.
- Power Supply
- AC85V～AC265V
- Water Resistant Grade
- IP68(1.2m/45min)
Review
Description
Features
·Stainless Steel Explosion Proof Junction Box for hazardous area
·Certified standards CNEX（GB3836-2010）·Auto temperature adjust kit for aggressive area
·Surface optional electro-polished or painting
Application scenario
It is Applicable to combustible gases and dust mixture places，such as petroleum, chemical industry, mine, military industry, medicine，oil depots, ships, drilling platforms, gas stations, fireworks production, grain processing and storage, etc.
Certificate | |||
|
ATEX Certificate Mark
|
ExdⅡC T6 Gb/ Ex tD A21 IP68 T80℃
|
||
|
Certificate
|
CNEx16.1481
|
||
CCC | Support | ||
Mechanical | |||
Housing | Stainless steel 304 or 316L | ||
Ingress protection | IP68 (1.2m/ 45min) | ||
Optional Power Convert Module | |||
Voltage Input | AC100V～AC240V | ||
Current | ≦3A | ||
Ambient | |||
Ambient temperature | -40℃～+60℃ | ||
Relative Humidity | ≦95% (no condensation) | ||
MECHANICAL
Material: Stainless steel 304/316L
Ingress protection: IP68
Cable glands: 4pcs G3/4 or NPT3/4

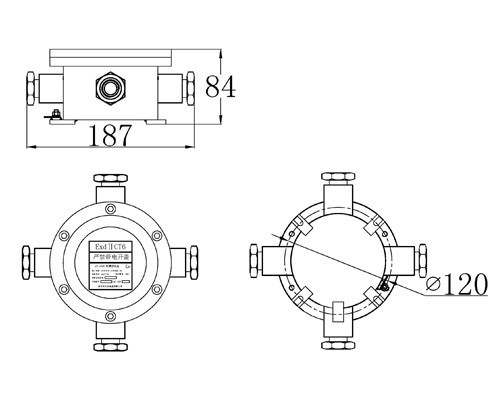

Overall size: Φ187*84mm
Inner usable size:Φ100*75mm
Net Weight: 3.5kg
