Stainless Steel ATEX Explosion Proof Box
- Model
- CZ300
Item specifics
- Material
- Stainless steel 304 or 316L
- Certified
- ATEX, IECEx
- apply
- Gas Zone 1, Zone 2, Dust Zone 21, 22.
- Power Supply
- AC100-240V
- Water Resistant Grade
- IP68(1.2m/45min)
Review
Description
Features
·Stainless Steel ATEX Explosion Proof Box for hazardous area
·Certified standards IEC/EN60079 (2014)·Auto temperature adjust kit for aggressive area
·Surface optional electro-polished or painting
Application scenario
It is Applicable to combustible gases and dust mixture places，such as petroleum, chemical industry, mine, military industry, medicine，oil depots, ships, drilling platforms, gas stations, fireworks production, grain processing and storage, etc.
Certificate | |||
|
ATEX Certificate Mark
|
CE2460 EX Ⅱ2G Ex db op is IIC T6 Gb,
Ⅱ2D Ex tb op is IIIC T80 ℃ Db |
||
|
Certificate
|
Presafe 17 ATEX 11328X, IECEx PRE 18.0030X
|
||
Standards | IEC/EN60079 | ||
Mechanical | |||
Housing | Stainless steel 304 or 316L | ||
Ingress protection | IP68 (1.2m/ 45min) | ||
Optional Power Convert Module | |||
Voltage Input | AC100V～AC240V | ||
Voltage output | 24V3A | ||
Power | 75W | ||
Optional Optical Fiber Convert Module | |||
Type | Signal Mode Fiber, SC | ||
Network transmit mode | 10/100M support MDI/MDIX, Distance:20KM | ||
Ambient | |||
Ambient temperature | -40℃～+60℃ | ||
Relative Humidity | ≦95% (no condensation) | ||
Optional surge protection | |||
Max discharge current | 10KA | ||
Max continues working
voltage | 40VAC | ||

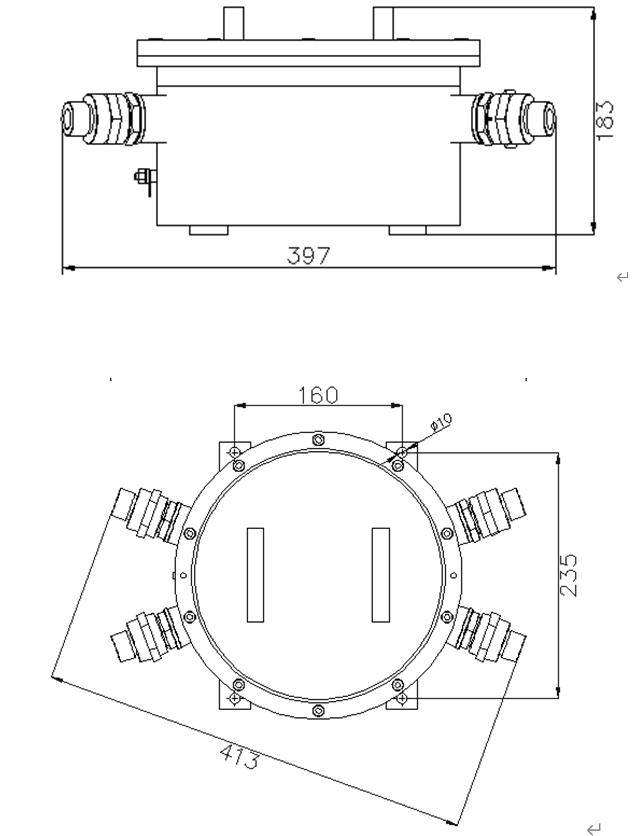

MECHANICAL
Material: Stainless steel 304/316L
Ingress protection: IP68
Cable glands: 4pcs M25*1.5, M27*1.25
Overall size: 413*397*183mm (L*W*H)
Inner usable size:230*230*120mm (L*W*H)
Net Weight: 13.2kg
