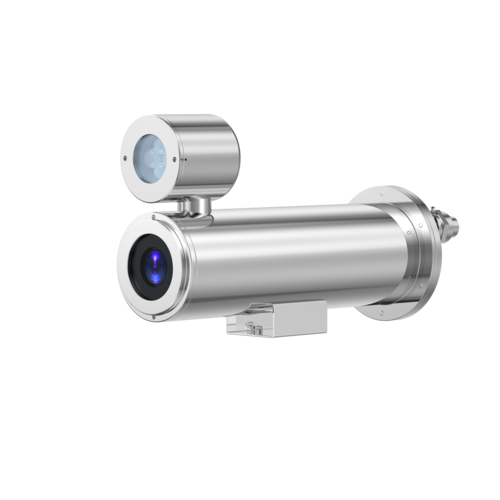

Stainless Steel Explosion Proof Camera Housing with Infrared
- Model
- ZAF1032
Item specifics
- Material
- Stainless steel 304 or 316L
- Certified
- CNEx, CCC
- apply
- Gas Zone 1, Zone 2, Dust Zone 21, 22.
- Power Supply
- AC100-240V or AC24V or POE
- Water Resistant Grade
- IP68(1.2m/45min)
Review
Description
Features
·Stainless Steel Explosion Proof Camera Housing with Infrared for hazardous area
·Certified standards CNEX（GB3836-2010）·Strong tempered glass, fit for hydrofluoric acid area
·Intelligent window defroster design
·Auto temperature adjust kit for aggressive area
·Surface optional electro-polished or painting
·H.264 main profile / MJPEG
·100m infrared lights
Application scenario
It is Applicable to combustible gases and dust mixture places，such as petroleum, chemical industry, mine, military industry, medicine，oil depots, ships, drilling platforms, gas stations, fireworks production, grain processing and storage, etc.
Certificate | |||
|
Certificate Mark
|
ExdⅡC T6 Gb/ Ex tD A21 IP68 T80℃
|
||
|
Certificate
|
CNEx16.2693X
|
||
CCC | Support | ||
Image | |||
Infrared lights distance | 100m | ||
Mechanical | |||
Housing | Stainless steel 304 or 316L | ||
Ingress protection | IP68 (1.2m/ 45min) | ||
Electrical | |||
Voltage | AC100V～AC240V or AC24V | ||
Trail cable | 2m integrated cable | ||
Ambient | |||
Ambient temperature | -40℃～+60℃ | ||
Relative Humidity | ≦95% (no condensation) | ||
MECHANICAL
Material: Stainless steel 304/316L
Ingress protection: IP68
Cable glands: 2pcs G3/4 or M25*1.5
Inter Userable Dimension: 200*75*75mm
Net Weight: 10kg
Mount: wall
Wall bracket: ZAZ100B
