Stainless Steel Explosion Proof Bullet Camera with Infrared
- Model
- ZAF109-H
Item specifics
- Material
- Stainless steel 304 or 316L
- Certified
- CNEX, CCC
- apply
- Gas Zone 1, Zone 2, Dust Zone 21, 22.
- Power Supply
- DC12V or POE
- Water Resistant Grade
- IP68(1.2m/45min)
Review
Description
Features
·Stainless Steel Explosion Proof Bullet Camera with Infrared for hazardous area
·Certified standards CNEX（GB3836-2010）·Strong tempered glass, fit for hydrofluoric acid area
·Intelligent window defroster design
·Auto temperature adjust kit for aggressive area
·Surface optional electro-polished or painting
·H.264 main profile / MJPEG
·30m infrared lights
Application scenario
It is Applicable to combustible gases and dust mixture places，such as petroleum, chemical industry, mine, military industry, medicine，oil depots, ships, drilling platforms, gas stations, fireworks production, grain processing and storage, etc.
Certificate | |||
|
Certificate Mark
|
ExdⅡC T6 Gb/ Ex tD A21 IP68 T80℃
|
||
|
Certificate
|
CNEx16.2526
|
||
CCC | Support | ||
Image | |||
Effective Pixels | 2M(1920x1080) | ||
|
Image Device
|
1/2.8" Progressive Scan CMOS
|
||
Lens | 4mm,6mm,8mm,12mm | ||
Day&Night | IR cut filter | ||
Standard | ONVIF, PSIA, CGI, ISAPI | ||
Communication interface | 1 RJ45 10M/100M self-adaptive Ethernet interface, 1 RS-485. | ||
Video output | Dual core 1Vp-p Composite Output (75Ω） | ||
Minimum illumination | Color: 0.01Lux @ (F2.0, AGC ON) B/W: 0 Lux with IR | ||
Infrared lights distance | 30m | ||
Mechanical | |||
Housing | Stainless steel 304 or 316L | ||
Ingress protection | IP68 (1.2m/ 45min) | ||
Electrical | |||
Voltage | DC12V or POE | ||
Optional network signal | RJ45 | ||
Optical Audio | 1-way input, 1-way output | ||
Optical Alarm | 2-way alarm input, 1-way alarm output | ||
Trail cable | 2m integrated cable | ||
Ambient | |||
Ambient temperature | -25℃～+60℃ | ||
Relative Humidity | ≦95% (no condensation) | ||
Communication | |||
Protocol | Pelco-D, Pelco-P | ||
Network | |||
Network Interface | 1pcs of RJ45, support 10M/100M/1000M | ||
MECHANICAL
Material: Stainless steel 304/316L
Ingress protection: IP68
Cable glands: 2pcs G3/4 or NPT3/4

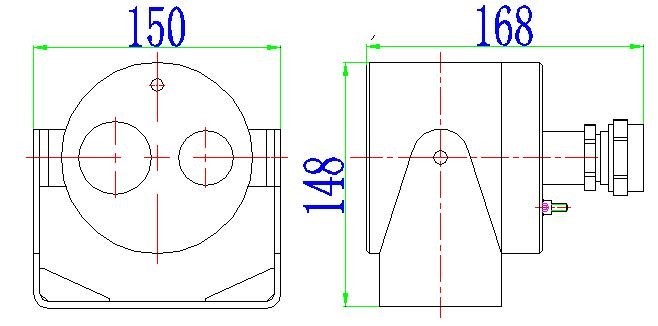

Dimension: Φ150*168mm
Net Weight: 3kg
Mount: wall
Wall bracket: ZAZ109B
