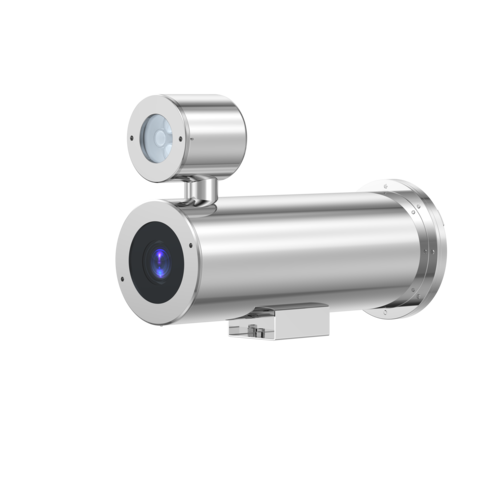

Stainless Steel Explosion Proof Bullet Camera with IR
- Model
- CZ1035
Item specifics
- Material
- Stainless steel 304 or 316L
- Certified
- ATEX, IECEx
- apply
- Gas Zone 1, Zone 2, Dust Zone 21, 22.
- Power Supply
- AC100-240V or AC24V
- Water Resistant Grade
- IP68(1.2m/45min)
Review
Description
Features
·Stainless Steel Explosion Proof Bullet Camera with IR for hazardous area
·Certified standards IEC/EN60079 (2014)·Strong tempered glass, fit for hydrofluoric acid area
·Intelligent window defroster design
·Auto temperature adjust kit for aggressive area
·Surface optional electro-polished or painting
·H.264 main profile / MJPEG
·100m infrared lights
Application scenario
It is Applicable to combustible gases and dust mixture places，such as petroleum, chemical industry, mine, military industry, medicine，oil depots, ships, drilling platforms, gas stations, fireworks production, grain processing and storage, etc.
Certificate | |||
|
ATEX Certificate Mark
|
CE2460EX Ⅱ2G Ex db op is IIC T6 Gb,
Ⅱ2D Ex tb op is IIIC T80 ℃ Db |
||
|
Certificate
|
Presafe 17 ATEX 11328X, IECEx PRE 18.0030X
|
||
Standards | IEC/EN60079 | ||
Image | |||
Effective Pixels | 2M(1920x1080) | ||
|
Image Device
|
1/2.8"
interline-transfer CCD
|
||
Optical zoom | 20X ,4.7-94mm / 30X, 4.5-135mm | ||
Day&Night | IR cut filter | ||
Standard | ONVIF, PSIA, CGI, ISAPI | ||
Communication interface | 1 RJ45 10M/100M self-adaptive Ethernet interface, 1 RS-485. | ||
Video output | Dual core 1Vp-p Composite Output (75Ω） | ||
Minimum illumination | Color: 0.05Lux @ (F1.6, AGC ON) B/W: 0.01Lux @ (F1.6, AGC ON) | ||
Infrared lights distance | 100m | ||
Mechanical | |||
Housing | Stainless steel 304 or 316L | ||
Ingress protection | IP68 (1.2m/ 45min) | ||
Electrical | |||
Voltage | AC100V～AC240V or AC24V | ||
Optical Video signal | 1-way video output | ||
Optional network signal | RJ45 | ||
Optical Audio | 1-way input, 1-way output | ||
Optical Alarm | 2-way alarm input, 1-way alarm output | ||
Trail cable | 2m integrated cable | ||
Ambient | |||
Ambient temperature | -40℃～+60℃ | ||
Relative Humidity | ≦95% (no condensation) | ||
Communication | |||
Communication type | RS485 | ||
Protocol | Pelco-D, Pelco-P | ||
Network | |||
Network Interface | 1pcs of RJ45, support 10M/100M/1000M | ||
MECHANICAL
Material: Stainless steel 304/316L
Ingress protection: IP68
Cable glands: 2pcs G3/4 or NPT3/4
Dimension: 416.5*166*258mm
Net Weight: 11.5kg
Mount: wall
Wall bracket: ZAZ100B
