Stainless Steel Explosion Proof Dome Camera(CNEX)
- Model
- ZAT630
Item specifics
- Material
- Stainless steel 304 or 316L
- Certified
- CNEx,CCC
- apply
- Gas Zone 1, Zone 2, Dust Zone 21, 22.
- Power Supply
- AC85V～AC265V or DC24Vor AC24V
- Water Resistant Grade
- IP68(1.2m/45min)
Review
Description
Features
·Stainless Steel Explosion Proof Dome Camera(CNEX) for hazardous area
·Certified standards CNEX（GB3836-2010）·Strong tempered glass, fit for hydrofluoric acid area
·Auto temperature adjust kit for aggressive area
·Intelligent long focal speed limit, fit for long distance monitoring
·H.265+/H.265/H.264+/H.264 Video Compression
Application scenario
It is Applicable to combustible gases and dust mixture places，such as petroleum, chemical industry, mine, military industry, medicine，oil depots, ships, drilling platforms, gas stations, fireworks production, grain processing and storage, etc.
Certificate | |||
|
Certificate Mark
|
ExdⅡC T6 Gb/ Ex tD A21 IP68 T80℃
|
||
|
Certificate
|
CNEx15.2504X
|
||
CCC Certificate | Support | ||
Image | |||
Effective Pixels | 2M(1920x1080) | ||
|
Image Device
|
1/2.8" Progressive Scan CMOS
|
||
Optical zoom | 5.2-114.4mm, 22X optical | ||
Day&Night | IR cut filter | ||
Standard | ONVIF, PSIA, CGI, ISAPI | ||
Communication interface | 1 RJ45 10M/100M self-adaptive Ethernet interface, 1 RS-485. | ||
Minimum illumination | Color 0.001Lux/F1.5 B/W: 0.0001Lux/F1.5 | ||
Mechanical | |||
Housing | Stainless steel 304 or 316L | ||
Ingress protection | IP68 (1.2m/ 45min) | ||
Electrical | |||
Voltage | AC85V～AC265V or DC24Vor AC24V | ||
Optional network signal | RJ45 | ||
Optical Video signal | 1-way analog video output | ||
Optical Audio | 1-way input, 1-way output | ||
Optical Alarm | 2-way alarm input, 1-way alarm output | ||
Trail cable | 2m integrated cable | ||
Ambient | |||
Ambient temperature | -25℃～+60℃ | ||
Relative Humidity | ≦95% (no condensation) | ||
Communication | |||
Communication type | RS485 | ||
Protocol | Pelco-D, Pelco-P | ||
Pan & Tilt | |||
Horizontal | 360° | ||
Vertical | 0 to +90° | ||
Network | |||
Network Interface | 1pcs of RJ45, support 10M/100M/1000M | ||
MECHANICAL
Material: Stainless steel 304/316L
Ingress protection: IP68
Cable glands: G3/4 or NPT3/4

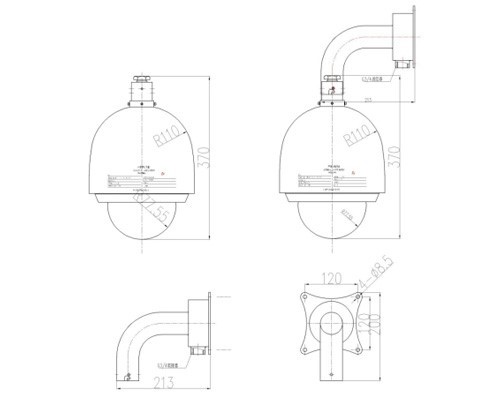

Dimension: 213*213*570mm
Net Weight: 15kg
Mount: wall, pole
Wall bracket: CZ630B
