Stainless Steel Explosion Proof Thermal Camera
- Model
- ZAT670
Item specifics
- Material
- Stainless steel 304 or 316L
- Certified
- CNEX,CCC
- apply
- Gas Zone 1, Zone 2, Dust Zone 21, 22.
- Power Supply
- AC100-240V or AC24V
- Water Resistant Grade
- IP68(1.2m/45min)
Review
Description
Features
·Stainless Steel Explosion Proof Thermal Camera for hazardous area
·Certified standards CNEX（GB3836-2010）·Strong tempered glass, fit for hydrofluoric acid area
·Intelligent window defroster design
·Auto temperature adjust kit for aggressive area
·High precision wiper, support user-defined
·Auto temperature adjust kit for aggressive area
·Symmetrical balancing design
·Intelligent long focal speed limit, fit for long distance monitoring
·H.264 main profile / MJPEG
·Thermal vision
Application scenario
It is Applicable to combustible gases and dust mixture places，such as petroleum, chemical industry, mine, military industry, medicine，oil depots, ships, drilling platforms, gas stations, fireworks production, grain processing and storage, etc.
Certificate | |||
|
Certificate Mark
|
Ex d ⅡC T6 Gb/ Ex tD A21 IP68 T80℃
|
||
|
Certificate No
|
CNEx20.1155
|
||
CCC Certificate | Support | ||
Image | |||
Effective pixel | 2M(1920x1080) | ||
|
Image Device
|
1/2.8" Progressive Scan CMOS
|
||
Optical zoom | 20X ,4.7-94mm / 30X, 4.5-135mm | ||
Day&Night | IR cut filter | ||
Standard | ONVIF, PSIA, CGI, ISAPI | ||
Communication interface | 1 RJ45 10M/100M self-adaptive Ethernet interface, 1 RS-485. | ||
Video output | 1Vp-p Composite anolog Output (75Ω） | ||
Minimum illumination | Color: 0.05Lux @ (F1.6, AGC ON) B/W: 0.01Lux @ (F1.6, AGC ON) | ||
Night vision lights | 150m distance | ||
Thermal | |||
pixel | 640*512 pixel,336*256 pixel | ||
Lens | 7.5mm,9mm,13mm,19mm,25mm,35mm,50mm | ||
Detector | 17μm | ||
High
sensitivity | ＜50mK @ f/ 1.0 | ||
Mechanical | |||
Housing | Stainless steel 304 or 316L | ||
Ingress protection | IP68 (1.2m/ 45min) | ||
Electrical | |||
Voltage | AC100V～AC240V or AC24V | ||
Optical Video signal | 1-way video output | ||
Optional network signal | RJ45 | ||
Optical Audio | 1-way input, 1-way output | ||
Optical Alarm | 2-way alarm input, 1-way alarm output | ||
Trail cable | 2m integrated cable | ||
Ambient | |||
Ambient temperature | -25℃～+60℃ | ||
Relative Humidity | ≦95% (no condensation) | ||
Communication | |||
Communication type | RS485 | ||
Protocol | Pelco-D, Pelco-P | ||
Pan & Tilt | |||
Horizontal | 360° | ||
Vertical | -90 to +90° | ||
Network | |||
Network Interface | 1pcs of RJ45, support 10M/100M/1000M | ||

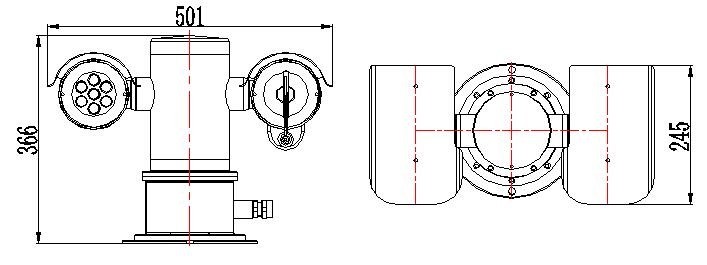

MECHANICAL
Material: Stainless steel 304/316L
Ingress protection: IP68
Cable glands: M25x1.5, or G3/4
Dimension: 501*295*366mm
Net Weight: 35.5kg
Mount: wall, pole (or customer tailored)
Wall bracket: ZAZ6XXB
